In the realm of plastic manufacturing, precision and efficiency are paramount. The selection of appropriate machinery directly influences the quality of the final product and the overall productivity of the manufacturing process. Two fundamental machines at the heart of plastic processing are the extruder and the injection molding machine. While they may appear similar to the untrained eye, these machines operate on different principles and are suited for distinct applications. Understanding the nuances between an extruder and an Injection Molding Machine is essential for engineers, manufacturers, and stakeholders aiming to optimize production workflows and meet specific industry demands. This analysis delves into the technical distinctions, operational mechanisms, and application domains of these critical pieces of equipment.
Extruders are machines designed to process plastic raw materials by heating and pushing them through a die to create continuous shapes of fixed cross-sectional profiles. The process begins with plastic pellets or powders fed into a hopper. A rotating screw conveys the material through a heated barrel, where it melts due to both the applied heat and the mechanical shear from the screw's rotation. Upon reaching the die, the molten plastic is shaped into products such as pipes, profiles, sheets, and films. The continuous nature of extrusion makes it ideal for producing long lengths of consistent cross-sections.
Injection molding machines, on the other hand, are designed to produce discrete parts by injecting molten plastic into a mold cavity. The operation involves plasticizing raw materials in a heated barrel and then injecting them at high pressure into a mold, where the material cools and solidifies into the shape of the cavity. Once the part has solidified, the mold opens, and the finished product is ejected. This cyclical process is highly efficient for mass-producing complex and intricate designs with high precision.
An extruder primarily consists of a hopper for material feeding, a barrel housing the rotating screw, heating elements, and a die for shaping the final product. The screw's design, including its length-to-diameter ratio and compression ratio, is critical in determining the quality and consistency of the extrusion. Additionally, cooling systems are employed post-extrusion to solidify the continuous profile. Advanced extruders may also include degassing zones to remove volatile components, leading to higher quality outputs.
An injection molding machine comprises an injection unit and a clamping unit. The injection unit includes a hopper, barrel, reciprocating screw, and nozzle. The clamping unit holds the mold in place and applies the necessary force to keep it closed during injection and cooling. Key specifications include the clamping force, injection pressure, shot size, and the dimensions of the tie bars. Modern machines often feature precision control systems for temperature, pressure, and timing to achieve optimal results.
Both extruders and injection molding machines can process a variety of thermoplastics, including polyethylene (PE), polypropylene (PP), polystyrene (PS), and polyvinyl chloride (PVC). However, the suitability of a material for extrusion or injection molding depends on its rheological properties and the desired characteristics of the final product. Extruders are often used for materials that require continuous shaping, while injection molding is preferable for materials and designs that demand high precision and intricate details.
Extruders are widely used in producing items such as plastic pipes, tubing, weather stripping, fencing, deck railings, window frames, plastic films, and sheets. The capacity to produce continuous lengths makes extruders indispensable in industries like construction, packaging, and automotive. For instance, PVC pipes used in plumbing are typically manufactured through the extrusion process, ensuring uniform wall thickness and diameter over extended lengths.
Injection molding machines are utilized to produce a vast array of products, from small components like medical devices and automotive parts to consumer goods like toys and household appliances. The process is ideal for mass production of parts requiring complex geometries, tight tolerances, and high-quality surface finishes. The versatility of injection molding allows for the incorporation of inserts, overmolding, and the use of multiple materials in a single part.

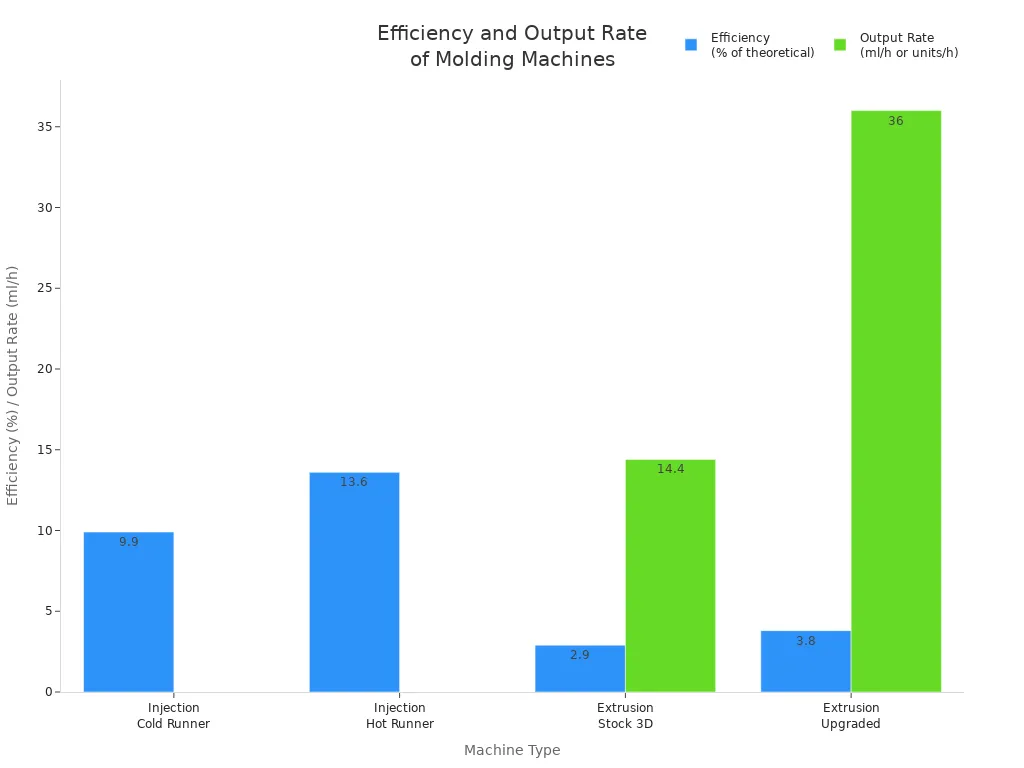

Extrusion is a continuous process, making it highly efficient for producing large volumes of products with consistent cross-sectional profiles. The uninterrupted nature reduces start-up and shutdown times, contributing to overall efficiency. Injection molding, being a cyclic process, is efficient for producing large quantities of discrete parts. However, each cycle involves mold closing, injection, cooling, and ejection, which may affect the cycle time depending on the part's complexity and material.
Extruders are limited to producing items with uniform cross-sections, which restricts design flexibility. Conversely, injection molding offers significant design freedom, enabling the creation of intricate shapes, undercuts, and varying wall thicknesses. The ability to produce complex geometries makes injection molding the preferred choice for detailed components requiring precision.
The cost of machinery and tooling significantly impacts the economic feasibility of production methods. Extruders generally require lower tooling costs since the dies are less complex compared to molds used in injection molding. Injection molding machines often involve substantial upfront investment in mold design and fabrication, especially for complex parts, which may include precision machining and intricate features.
Operating costs for both machines depend on factors such as energy consumption, maintenance, and labor. Extrusion processes may have lower energy requirements per unit weight of material processed due to their continuous nature. Material utilization is generally high in extrusion, with minimal wastage. Injection molding may produce more scrap due to runners, sprues, and defects, though these can often be recycled back into the process.
Injection molding excels in providing superior surface finishes and tight dimensional tolerances. The high-pressure injection ensures that the material fills the mold cavity completely, capturing fine details and textures. Extrusion, while capable of producing smooth surfaces, may not achieve the same level of precision due to the cooling and solidification of the continuous profile, which can lead to minor variations in dimensions.
The mechanical properties of extruded and injection-molded parts can differ due to the orientation of polymer chains during processing. Extrusion can induce anisotropy, where properties vary in different directions, affecting performance under load. Injection-molded parts are generally more isotropic, providing uniform properties throughout the component, which is critical for structural applications.
Recent advancements in extrusion technology include the development of twin-screw extruders, which enhance mixing capabilities and improve the dispersion of additives and fillers. Additionally, computer-controlled extruders enable precise control over processing parameters, resulting in improved product consistency and quality. Innovations in die design have allowed for more complex profiles and multi-material co-extrusion.
Injection molding has seen significant advancements with the integration of automation and robotics, increasing production speed and reducing labor costs. The advent of all-electric injection molding machines offers improved energy efficiency, precision, and repeatability. Moreover, technologies like gas-assisted injection molding and micro-injection molding have expanded the capabilities of injection molding to produce complex and minute components.
Environmental considerations are increasingly important in manufacturing. Both extrusion and injection molding generate waste, but efforts are being made to minimize environmental footprints. Extrusion processes often recycle scrap material more efficiently due to the continuous nature of the process. Injection molding waste, such as runners and sprues, can be ground and reused, though careful management is required to maintain material properties. The choice between these technologies can influence a company's sustainability initiatives.
A leading manufacturer in the automotive industry faced a decision between using extrusion or injection molding for producing door seals. The company opted for extrusion due to the continuous length and consistent profile required for seals. In contrast, a medical device manufacturer chose injection molding to produce intricate components with stringent dimensional tolerances, essential for device performance and patient safety.
Selecting between an extruder and an injection molding machine involves analyzing product design, production volume, material properties, and economic factors. For products requiring continuous lengths with uniform cross-sections, extrusion is the preferred method. If the product design includes complex geometries, varying wall thicknesses, or requires high precision, an Injection Molding Machine is more suitable. Additionally, considerations such as tooling costs, production speed, and material utilization play critical roles in decision-making.
Understanding the differences between extruders and injection molding machines is fundamental for optimizing plastic manufacturing processes. Each technology offers distinct advantages tailored to specific product requirements and production goals. Extruders are ideal for producing continuous profiles efficiently, while injection molding machines excel in creating complex, high-precision components. By carefully evaluating the operational mechanisms, applications, and economic implications, manufacturers can make informed decisions that enhance productivity and product quality. Embracing the appropriate technology not only meets the current manufacturing demands but also positions companies for future advancements in the industry. For intricate designs and precision parts, investing in an advanced Injection Molding Machine can provide a competitive edge in the market.
